Historical snapshots

The live graph answers "what does the cluster look like now?". Snapshots answer the follow-up SREs actually ask during an incident: "what changed?". When KubeAtlas records every resource add, update, and delete into an append-only event stream, the diff endpoint can replay a time window and tell you exactly which resources appeared, vanished, or were modified between two points.

Tier 2 only

Snapshots are a Tier 2 feature — they need the PostgreSQL backend. The event stream is an append-only table; a Tier 1 in-memory install has nowhere durable to keep it, and a feature that silently loses history on every Pod restart is worse than no feature at all.

This is enforced, not just documented:

• The Helm chart's values.schema.json rejects snapshots.enabled=true unless persistence.enabled=true.
• The snapshot API endpoints return 503 Service Unavailable on any install where the writer is not running — Tier 1, or Tier 2 with snapshots.enabled=false.

The memory backend does carry a tiny fixed ring buffer of recent events, but that exists only so the unit tests have something to exercise. It is not a Tier 1 feature and is not exposed through the API.

How it works

informer event ──▶ Writer.Enqueue ──▶ bounded queue ──▶ worker pool ──▶ PostgreSQL
   (hot path)        (non-blocking)                       (N workers)    resource_events

The snapshot writer subscribes to the same informer pipeline that feeds the live graph. The key property is that it never blocks the informer:

• Enqueue is non-blocking. It drops the event onto a bounded channel and returns immediately.
• A pool of worker goroutines drains the channel into PostgreSQL in the background.
• If the queue is full — a burst arriving faster than the workers can write — the writer sheds the oldest queued event rather than stalling the informer. Every shed event increments kubeatlas_snapshot_queue_drop_total.

Dropping under sustained overload is a deliberate trade: a slightly incomplete event stream is acceptable; an informer that falls behind the API server is not. In practice the queue absorbs normal churn comfortably — drops only appear under pathological write storms, and the diff endpoint is anchored by periodic full-sync markers (below) so a few missed deltas do not compound.

Full-sync markers

Alongside the event stream, KubeAtlas writes snapshot markers — rows in snapshot_meta that record "at this timestamp the cluster held N resources". A marker is a known-good anchor the diff walks from. Markers are written:

• periodically, by the optional Helm CronJob (snapshots.fullSyncSchedule), which calls the internal trigger endpoint;
• manually, via kubeatlas snapshot trigger or a direct POST to the internal trigger endpoint.

GET /api/v1/snapshots lists these markers, most-recent first.

Retention

The event stream is pruned to a configurable window — snapshots.retention, default 7d. An hourly background retainer deletes every event older than the window in batched DELETEs so the prune never holds a long transaction.

Retention bounds two things at once: the table's disk footprint, and the maximum diff window. The diff endpoint rejects any from/to window wider than the retention period — events beyond the window have been pruned, so a wider diff would silently under-report changes. Asking for more history than you keep is a 400, not a partial answer.

Reading the diff

The Web UI surfaces snapshot diffs in two places:

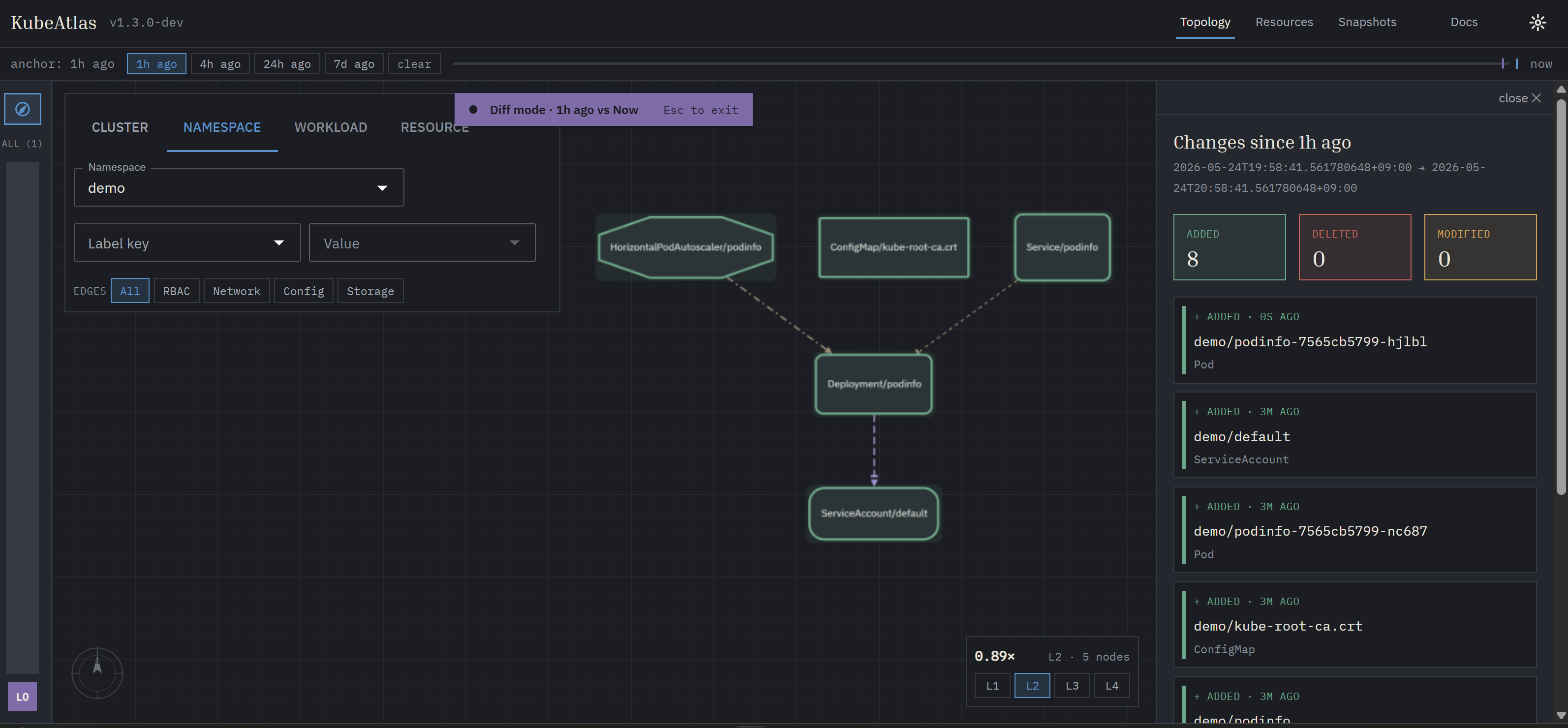

• The time-axis rail at the top of the topology canvas — pick an anchor (preset chip or drag the rail itself) and the canvas enters diff mode: added resources gain a green halo, removed ones drop to a dashed muted outline, modified ones get an amber overlay. Esc clears.

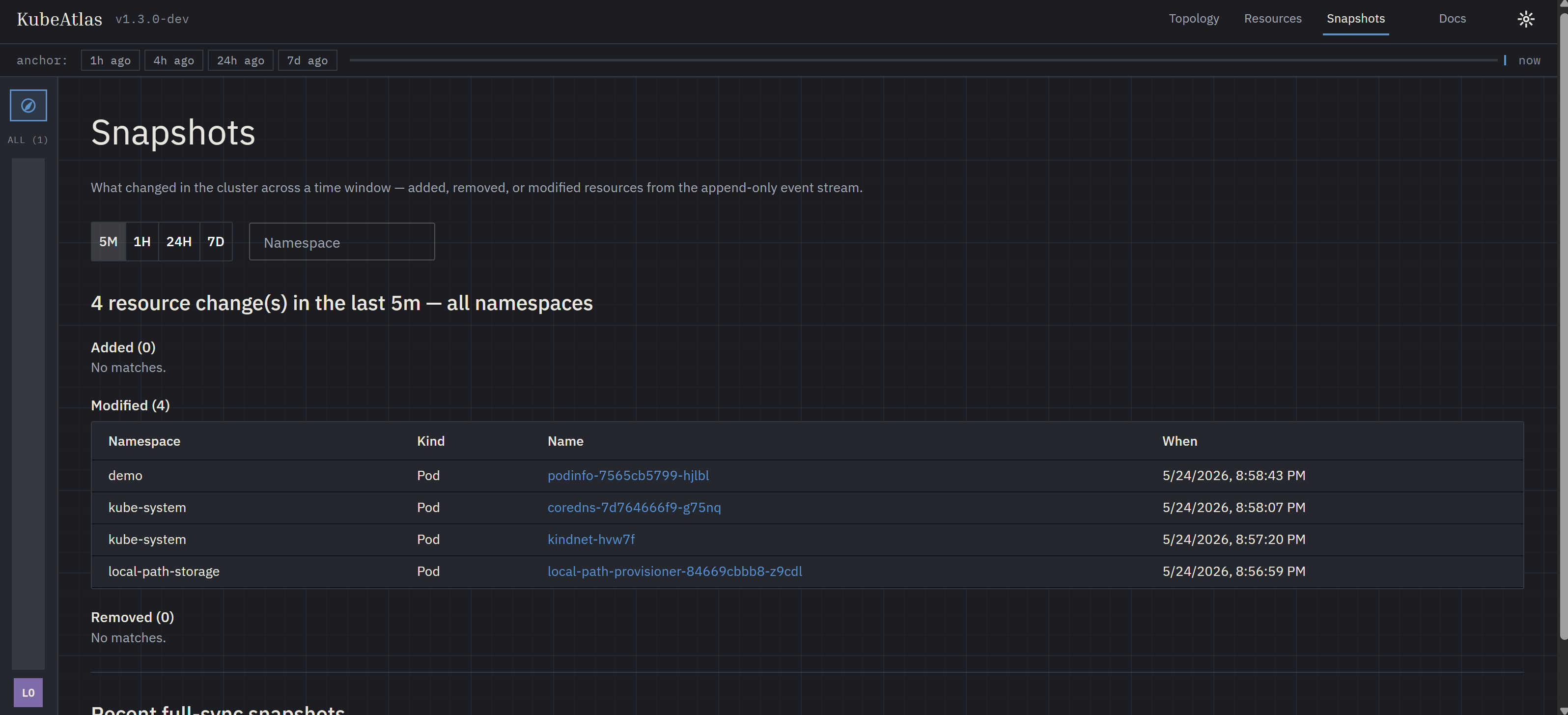

• The dedicated Snapshots page — a window-picker driven view with three tables (Added / Removed / Modified) plus a timeline of recent full-sync markers; the same data the API surfaces, in a denser tabular form.



Under both, the wire format is the same:

GET /api/v1/snapshots/diff?from=1h&to=now replays the event stream across the window and classifies every resource that appears in it:

Bucket	Meaning
added	First event in the window is an add; no later delete
removed	Last event in the window is a delete
modified	Seen, but neither freshly added nor removed

from and to accept now, a duration read as "ago" (5m, 1h, 7d), or an absolute RFC3339 timestamp. to defaults to now. An optional namespace restricts the diff to one namespace; omit it for the whole cluster.

The diff reports resource identity and metadata — kind, namespace, name, UID — not full resource bodies. It tells you what changed and when; reach for kubectl or your audit log for the field-level how.

See the API reference for the full request and response shapes.

Enabling snapshots

helm upgrade --install kubeatlas oci://ghcr.io/lithastra/charts/kubeatlas \
  --version 1.3.0 \
  --namespace kubeatlas --create-namespace \
  --set persistence.enabled=true \
  --set persistence.embedded.enabled=true \
  --set snapshots.enabled=true \
  --set snapshots.retention=7d

Tuning knobs, all under snapshots in values.yaml:

Value	Default	What it controls
enabled	false	Master switch (requires persistence.enabled)
retention	7d	Event-stream window and max diff width
queueSize	see chart	Writer queue capacity before drop-oldest kicks in
workers	see chart	Number of goroutines draining the queue into PG
fullSyncSchedule	see chart	Cron schedule for the periodic full-sync marker

Observability

The writer exports Prometheus metrics on /metrics when it is running:

Metric	Type	Meaning
kubeatlas_snapshot_events_processed_total	counter	Events durably written to PostgreSQL
kubeatlas_snapshot_queue_drop_total	counter	Events shed at enqueue under queue-full backpressure
kubeatlas_snapshot_write_failed_total	counter	Events dropped after the per-event retry budget was exhausted
kubeatlas_snapshot_queue_depth	gauge	Events currently buffered in the writer queue

A healthy install shows processed_total climbing with cluster churn and both drop counters flat at zero. A steadily rising queue_drop_total means the queue cannot keep up — raise snapshots.workers or snapshots.queueSize. A rising write_failed_total instead points at PostgreSQL itself — check the database's health and connectivity.
